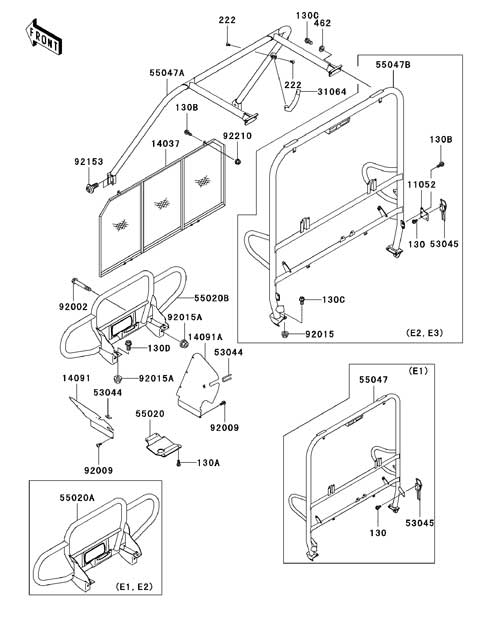

Category: KAF620 Guards/Cab Frame E1-E2, F1, G1

Click here to return to model selection.



Note: If a part you need is on the
diagram but not on the price list,
Email us and we will promptly add it.
parts@atvworks.com

Description

Part Number

Price

14091-1142 COVER,FR,L

14091-1142

$58.75

14091-1143 COVER,FR,RH

14091-1143

$58.75

53045A-1063 HOOK-ASSY

53045-1063

$23.00

55020-1449 GUARD,GEAR CASE (REAR)

55020-1449

$38.95

92002-1661 Bolt,Suspension Rod

92002-1661

$5.95

92009-1166 SCREW,TAPPING

92009-1166

$8.65

92153 BOLT,FLANGED,14X36

92153-1282

$4.49
