ATV Parts: Kawasaki, Driveline

KD39158-3010/4010 Double Kit TWO KAWASAKI MULE COMPLETE REAR DRIVE SHAFTS w/ 2 Bearings

Price$285.00

KD39158-3010/4010 Double Kit TWO KAWASAKI MULE COMPLETE REAR DRIVE SHAFTS w/ 2 Bearings

Product ID KD39158-30104010DoubleKit

New Aftermarket Complete Heavy Duty Rear Drive Shaft Set (Left or Right)

Fits Kawasaki Mules: 3000 / 3010 / 3020 / 4000 / 4010

Includes: 2 Aftermarket Bearings, 2 Aftermarket Cover Gaskets, 2 Aftermarket Oil Seals

Axles Replaces OEM:
On a 3010 Mule: Replaces both Shafts 39158-1109, 39158-1105 and Boot 49006-1257
On a 4010 Mule: Replaces both shafts 39158-1119, 39158-1120, and Boot 49006-1257

Bearings Replaces OEM #: (KDBG303)
92045-1411 supersedes 92045-0107 (25BWD02C)
92045-0021 supersedes 92045-0094 (25BWD02A)
92045-0028 supersedes 92045-0102 (DAC2552W)
25mm x 52mm x 42mm

Oil Seals Replaces OEM#:
92049-1298
35mm x 55mm x 8mm

Cover Gaskets Replaces OEM#:
11060-1251 & 11009-1689

Price$285.00

KD39158-3010/4010Kit KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ Bearing

Price$150.00

KD39158-3010/4010Kit KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ Bearing

Product ID KD39158-30104010Kit

New Aftermarket Complete Heavy Duty Rear Drive Shaft (Left or Right)

Fits Kawasaki Mules: 3000 / 3010 / 3020 / 4000 / 4010

Includes: 1 Aftermarket Bearing, 1 Aftermarket Cover Gasket, 1 Aftermarket Oil Seal

Axle Replaces OEM:
On a 3010 Mule: Replaces both Shafts 39158-1109, 39158-1105 and Boot 49006-1257
On a 4010 Mule: Replaces both shafts 39158-1119, 39158-1120, and Boot 49006-1257

Bearing Replaces OEM #: (KDBG303)
92045-1411 supersedes 92045-0107 (25BWD02C)
92045-0021 supersedes 92045-0094 (25BWD02A)
92045-0028 supersedes 92045-0102 (DAC2552W)
25mm x 52mm x 42mm

Oil Seal Replaces OEM#:
92049-1298
35mm x 55mm x 8mm

Cover Gasket Replaces OEM#:
11060-1251 & 11009-1689

Price$150.00

KD39158-2510 KAWASAKI MULE COMPLETE REAR DRIVE SHAFT

Price$150.00

KD39158-2510 KAWASAKI MULE COMPLETE REAR DRIVE SHAFT

Product ID KD39158-2510

Kawasaki Mule 2510 Series Rear Complete Drive Shaft.
Replaces 39158-1096 & 39158-1101 or 39158-1104 & 39158-1105 or
39158-1109 & 39158-1105.
Recommend rear axle bearings XBG139.

Fits:
All Kawasaki Mule 2500/2510/2520 models.

Price$150.00

KD39158-2510 KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ BEARINGS

Price$195.00

KD39158-2510 KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ BEARINGS

Product ID KD39158-2510Kit

New Aftermarket Complete Heavy Duty Rear Axle / Drive Shaft

Includes 2 Aftermarket Bearings: Replaces 92045-1229 / 92045-1163 (XBG139)
Includes 1 Aftermarket Oil Seal: Replaces 92049-1298
Includes Replacement Boot 49006-1257
Includes 1 Aftermarket Cover Gasket 11060-1251

Axle Replaces OEM:
39158-1096 (Outside) AND 39158-1101 (Inside)
Superseded # 39158-1089, 39158-1093, 39158-1079

Fits All Kawasaki Mules: 2500 / 2510 / 2520

Price$195.00

Kawasaki Mule Rear Shock Replacement for 45014-1435

Price$39.99

Kawasaki Mule Rear Shock Replacement for 45014-1435

Product ID KD1435

This is a High Quality Rear (Right or Left) Shock Absorber.

Replaces OEM #: 45014-1435

Fits Kawasaki Mules: 2010 / 2020 / 2030 / 2500 / 2510 / 2520 / 3000 / 3010 / 3020 / 4000 / 4010 *** Does not fit the trans (two rows of seats)

* Powder Coated for Long Life

Price$39.99

KD39158-2510 TWO KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ 4 BEARINGS

Price$285.00

KD39158-2510 TWO KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ 4 BEARINGS

Product ID KD39158-2510DoubleKit

New Aftermarket Complete Heavy Duty Rear Axle / Drive Shaft Set

Includes 4 Aftermarket Bearings: Replaces 92045-1229 / 92045-1163 (XBG139)
Includes 2 Aftermarket Oil Seals: Replaces 92049-1298
Includes Replacement Boots 49006-1257
Includes 2 Aftermarket Cover Gasket 11060-1251

Axle Replaces OEM:
39158-1096 (Outside) AND 39158-1101 (Inside)
Superseded # 39158-1089, 39158-1093, 39158-1079

Fits All Kawasaki Mules: 2500 / 2510 / 2520

Price$285.00

RC100 Bearing Clip

Price$4.99

RC100 Bearing Clip

Product ID RC100

Bearing Clip.
Replaces 92033-1274 or 481J5500

Price$4.99

TL119 Deluxe CV Boot Banding Tool

Price$59.00

TL119 Deluxe CV Boot Banding Tool

Product ID TL119

Makes easy work of tightening CV Boot bands.
Racheting handle tightens clamps and cutter trims off extra clamp.
Instructions included.

Price$59.00

Kawasaki Mule (ALL) Steering Gear - 2 Rack & Pinion Bellows Boots

Price$19.95

Kawasaki Mule (ALL) Steering Gear - 2 Rack & Pinion Bellows Boots

Product ID KD39191

New Steering Gear -v2 Rack and Pinion Bellows Boots

Replaces Both Boots on ALL Kawasaki Mules Steering Gear

Mule 500/520/550
Mule 600/610
Mule 2500/2510/2520/2010/2020/2030
Mule 3000/3010/3020
Mule 4000/4010

Dimensions:
12MM Small End
43MM Big End
Collapses to 75MM Length
Expands to 177MM Length

Made out of Silicone

No modification is required.

Come with 2 Boots.

Price$19.95

RC300 52mm RETAINING CLIP

Price$5.00

RC300 52mm RETAINING CLIP

Product ID RC300

52mm RETAINING CLIP
Replaces :
481J5200

Price$5.00

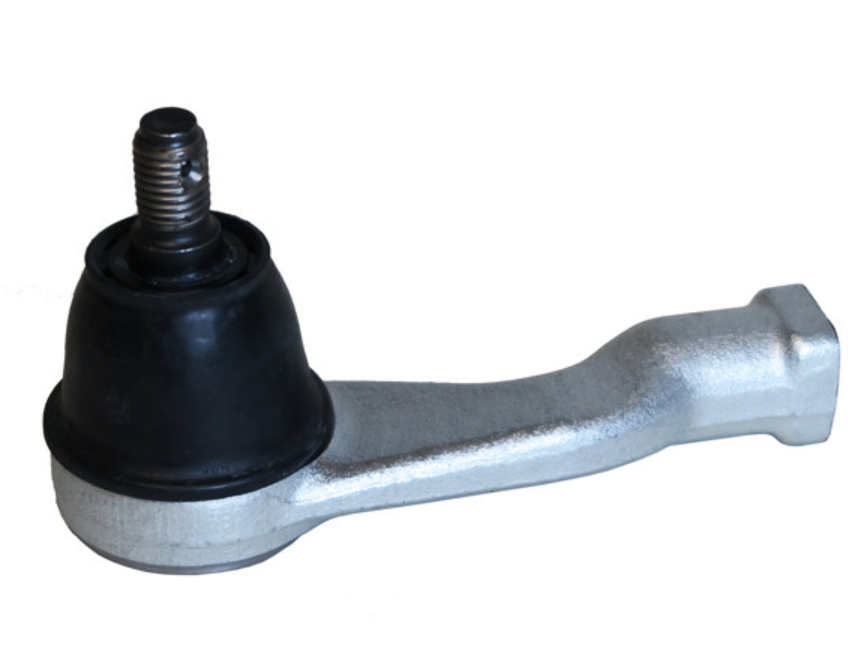

Replaces: 39112-1068RODEND-TIE, STEERING GEAR, LH

List Price: $77.76
Price$45.00

Replaces: 39112-1068RODEND-TIE, STEERING GEAR, LH

Product ID TE310L

Replacement for: 39112-1068 RODEND-TIE, STEERING GEAR, LH

List Price: $77.76
Price$45.00

AX0310H Mule 610 Complete Front Axle

Price$119.00

AX0310H Mule 610 Complete Front Axle

Product ID AX0310H

Aftermarket Kawasaki Mule 610/SX Complete Front Axle.
Fits:
Kawasaki Mule KAF400 610 05-16
Kawasaki Mule KAF400 SX 17-18
Replaces 59266-0039 & 59266-0006.
PD5003
*Supersedes AX38303

Price$119.00

Front Struts 2510/3010/4010(Gas or Diesel) Kawasaki Mule

Price$325.00

Front Struts 2510/3010/4010(Gas or Diesel) Kawasaki Mule

Product ID KD23-1013X2

These are High Quality Front (Right or Left) Struts.

Replaces OEM # 45023-1005 (Fits Mules 2500 / 2510 / 2520)
Replaces OEM # 45023-1013 (Fits Mules 3000 / 3010 / 3020)
Replaces OEM # 45023-7503 (Fits Mules 4000 / 4010)
Also Replaces OEM # 45023-0005 / 45023-1006 / 45023-7506

* Powder Coated for Long Life
* Nitrogen Charged for Fade Free Performance
* Spring is K-1.95 (Identical to stock)
* Set of 2 Struts

Price$325.00

Kawasaki 600 / 610 Mule Rear Axle Replacement Bearing & Seal Kit

Price$29.00

Kawasaki 600 / 610 Mule Rear Axle Replacement Bearing & Seal Kit

Product ID KDREARAXLE610

New Rear Axle Kit

Comes with 1 Bearing, 1 Seal & 1 Circle Clip / Snap Ring

Replaces OEM #s...
Bearing # 92045-1229 (BG139)
Seal # 92049-0049 (SE541)
Circle Clip # 92033-2149

Fits Kawasaki Mule 600 / 610

Price$29.00

TL119A Basic Banding Tool

Price$35.95

TL119A Basic Banding Tool

Product ID TL119A

Econo CV Boot Banding Tool
Helps facilitate tightning those pesky CV Boot bands.
Includes instructions.

Price$35.95

XAB717 Joint Grease Pack

Price$4.00

XAB717 Joint Grease Pack

Product ID XAB717

CV Joint Grease Pack

Price$4.00

Steering Gear Assembly

Price$470.00

Steering Gear Assembly

Product ID 39191-Y001

Price$470.00

59266-0735 | JOINT-BALL,FR DIFF SIDE

Price$764.00

59266-0735 | JOINT-BALL,FR DIFF SIDE

Product ID 59266-0735

Price$764.00

AX0305H Kawasaki Teryx Right Rear Complete Drive Shaft

Price$149.95

AX0305H Kawasaki Teryx Right Rear Complete Drive Shaft

Product ID AX0305H

Aftermarket Kawasaki Right Rear Complete Drive Shaft.
Fits:
KRF750 Teryx 08-11

Fits Right side.
Replaces OEM 59266-0019
Supersedes AX38319
See AX31114HD for Heavy Duty Axle
See AX0308H for Left Rear Side

Price$149.95

SB301 KLF300/400 SWINGARM BOOT /DRIVE SHAFT BOOT REAR

Price$27.95

SB301 KLF300/400 SWINGARM BOOT /DRIVE SHAFT BOOT REAR

Product ID SB301

SWING ARM BOOT/DRIVE SHAFT BOOT REAR

FITS:
KLF300 ALL YEARS
KLF400 ALL YEARS
Replaces OE 49006-1237

Price$27.95

Front and Rear Driveline Replacment

Price$111.00

Front and Rear Driveline Replacment

Product ID 1101

Price$111.00

610 Front Drive Shaft Boot

Price$75.00

610 Front Drive Shaft Boot

Product ID 49006-0105

Kawasaki Mule 610 / SX UJ Boot

Price$75.00

Drive Converter Spider

Price$125.00

Drive Converter Spider

Product ID 49050-0010

Price$125.00
