Kawasaki Parts Diagram:
KVF300 Prairie 2X4 (Rear) 99-02
KVF300 Prairie 300 4X4 99-02
KVF400 Prairie 400 2X4 (Rear) 99-02
KVF400 Prairie 400 4X4 97-02
Our Kawasaki diagrams are a carefully selected combination of OEM and aftermarket parts to give you the lowest prices possible.

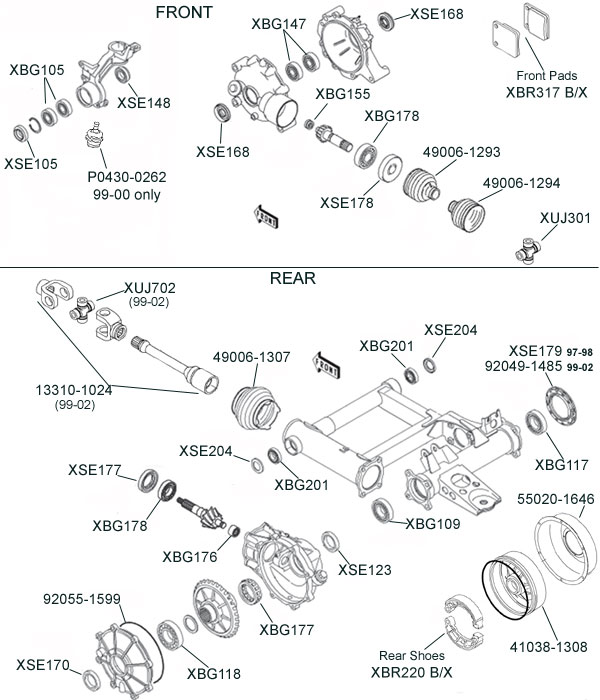

Kawasaki KVF Prairie Parts Diagram

Part Number

Price



XSE105 Seal

$5.95

XSE123 Differential Seal

$5.95

XSE148 Seal

$6.00

XSE168 Seal

$5.95

XSE170 Seal

$7.95

XSE177 Pinion Seal

$8.95

XSE178 Pinion Seal

$6.95

XSE179 Seal (97-98 only)

$39.95

XSE204 Swingarm Seal

$10.95

92049-1485 Seal (99-02)

$53.00

92055-1599 O-Ring

$13.50

XBG105 Knuckle Bearing (2 needed per side)

$8.95

XBG109 Axle Bearing

$12.95

XBG117 Axle Bearing

$10.95

XBG118 Bearing

$14.95

XBG147 Bearing

$18.50

XBG155 Pinion Bearing

$13.95

XBG176 Pinion Bearing

$26.95

XBG177 Bearing

$24.95

XBG178 Pinion Bearing

Record not found

XBG201 Swingarm Bearing

$17.00

49006-1293 Boot

$35.00

49006-1294 Boot

$27.25

49006-1307 Boot

$30.00

XUJ301 U-Joint

$33.95

XUJ702 U-Joint (99-02)

$39.99

13310-1024 Drive Shaft (99-02)

$143.45

P0430-0262 Ball Joint

$27.95

XBR317B Armor-Tech Front Pads

$20.00

XBR317X EBC Standard Front Pads

Record not found

XBR317SV EBC Severe Duty Front Pads

Record not found

XBR220B Armor-Tech Rear Shoes

$25.50

XBR220X EBC Rear Shoes

Record not found

41038-1308 Brake Drum

$249.60

55020-1646 Brake Cover

$11.49
