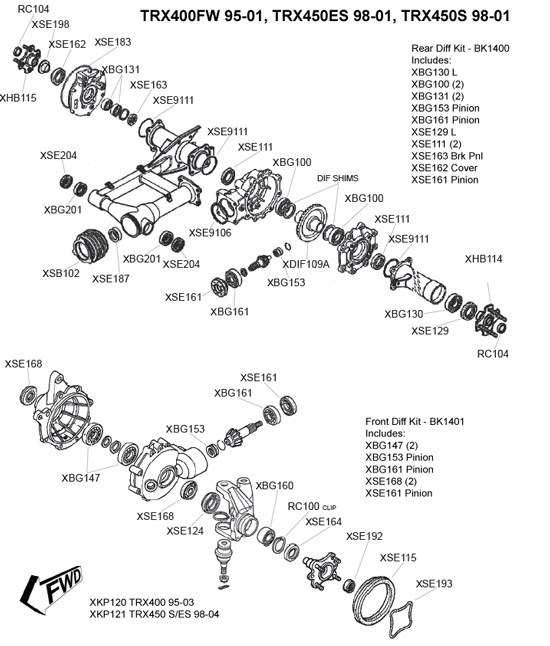

Parts Diagram
Honda TRX400FW 98-01 TRX450 S/ES 98-01
We carry sealed knuckle Bearings for the TRX400/450 they will last much longer than the un-sealed stock bearings.

Honda ATV Parts Bearings and Seals

Part Number

Price



XSE111 Seal

$6.95

XSE115 Drum Seal

$17.95

XSE124 Knuckle Seal

$6.95

XSE129 Seal

$7.95

XSE161 Pinion Seal

$10.95

XSE162 Seal

$14.95

XSE163 Seal

$9.95

XSE168 Seal

$5.95

XSE183 Seal

$10.95

XSE187 Seal

$9.95

XSE192 Plastic Seal

$3.95

XSE193 Seal

$5.95

XSE198 Hub Seal

$26.95

XSE204 Swingarm Seal

$10.95

XSE9106 Seal

$5.95

XSE9111 O-Ring

$3.95

XSB102 Swingarm Boot

$10.95

XBG100 Bearing

$18.95

XBG130 Bearing

$13.95

XBG131 Bearing

$21.95

XBG147 Diff Bearing

$18.50

XBG153 Pinion Bearing

$18.95

XBG160 Sealed Knuckle Bearing

$35.95

XBG161 Pinion Bearing

$36.95

XBG201 Swingarm Bearing

$17.00

RC100 Clip

$4.99

RC104 Clip

$4.95

XDIF109A Ring Gear

$132.00

XKP120 Ball Joint

$24.00

XKP121 Ball Joint

$22.00

HB114 Hub

$49.95

HB115 Hub

$54.95

BK1400 Rear Diff Kit

$124.95

BK1401 Front Diff Kit

$64.95
